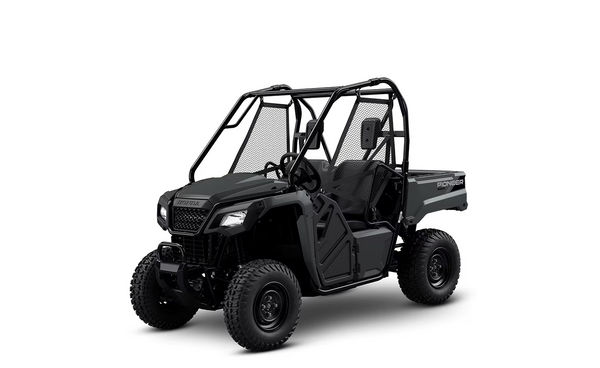

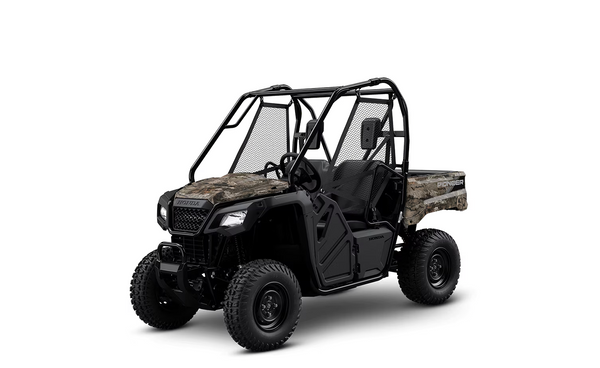

2025 Honda Pioneer 520

Work smarter, roam further

The Pioneer 520 is the Swiss Army knife of side-by-sides, combining compact agility with a mighty 518cc engine. With a 50-inch width, this mini powerhouse effortlessly navigates narrow trails, while a strut-assist tilt/dump bed, seating for two, and 1000-pound towing capacity underscore its versatility and reliability.

• Engine Type
  518cc liquid-cooled single-cylinder four-stroke
• Bore And Stroke
  96.0mm x 71.5mm
• Compression Ratio
  9.5:1
• Valve Train
  OHV; two valves per cylinder
• Induction
  Electronic fuel injection (PGM-FI), 36mm throttle body
• Clutch
  Automatic
• Transmission
  Five-speed automatic transmission with AT/MT modes
• Driveline
  Direct front and rear driveshafts
• Front Suspension
  Independent double-wishbone; 5.8-inch travel
• Rear Suspension
  Independent double-wishbone with preload adjustability; 5.9-inch travel
• Front Brake
  Dual 200mm hydraulic disc
• Rear Brake
  Single 170mm hydraulic disc
• Front Tires
  24 x 8-12
• Rear Tires
  24 x 10-12
• Length
  105.0 inches
• Width
  50.0 inches
• Height
  71.2 inches
• Wheelbase
  73.0 inches
• Bed Capacity
  450 pounds
• Towing Capacity
  1000 pounds
• Ground Clearance
  8.5 inches
• Turning Radius
  12.8 feet
• Curb Weight
  1058 pounds - Includes all standard equipment, required fluids and full tank of fuel.
• Fuel Capacity
  4.1 gallons, including 1.1-gallon reserve
