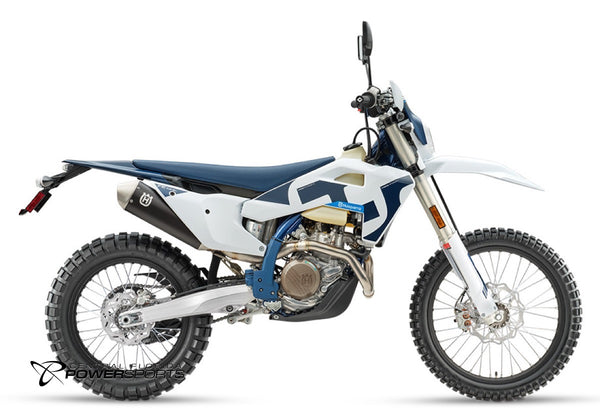

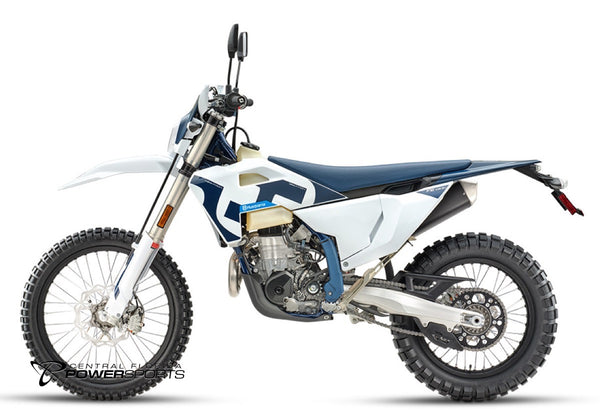

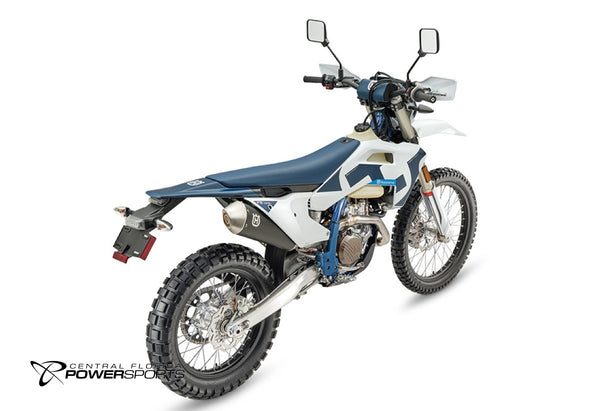

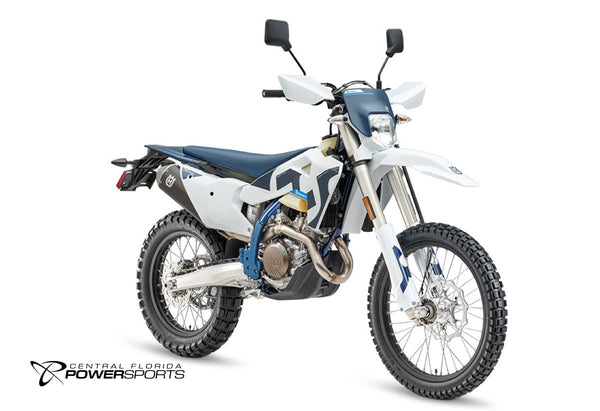

2026 Husqvarna FE 501S

The latest technology and premium components ensure the FE 501s offers a riding experience like nothing else. Advanced electronics tame the most powerful machine in the dual-sport line-up with the FE 501s delivering a broad spread of controllable power. Inside the engine, the shaft arrangements are positioned at the ideal centre of gravity to vastly benefit manoeuvrability, which is complemented further by the perfectly balanced chassis and WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501s is finished with functional bodywork adorned with new graphics inspired by the Swedish heritage of the brand.

• Primary drive
  29:72
• Transmission
  6-speed
• Battery capacity
  2 Ah
• Cooling
  Liquid cooled
• Secondary gear ratio
  14:48
• Starter
  Electric starter
• Stroke
  72 mm
• Bore
  95 mm
• Clutch
  Wet, DDS multi-disc clutch, Brembo hydraulics
• Compression ratio
  12.75
• Displacement
  510.9 cm³
• EMS
  Keihin EMS
• Design
  1-cylinder, 4-stroke engine
• Fuel-mixture generation
  Keihin EFI, throttle body 42 mm
• Weight (without fuel)
  116.2 kg
• Tank capacity (approx.)
  7.7 l
• Wheelbase
  1489 mm
• Front brake disc diameter
  260 mm
• Rear brake disc diameter
  220 mm
• Chain
  520 X-Ring
• Frame design
  Central double-cradle-type 25CrMo4 steel
• Front suspension
  WP XACT cartridge Ø 48 mm
• Ground clearance
  343 mm
• Handlebar
  Pro Taper, Aluminium Ø 28/22 mm
• Rear suspension
  WP XACT Monoshock with linkage
• Seat height
  952 mm
• Silencer
  Aluminium
• Steering head angle
  63.9 °
• Rear subframe design
  Aluminum-reinforced polyamide
• Suspension travel (front)
  300 mm
• Suspension travel (rear)
  300 mm
• Tyre dimensions (front/rear)
  90/90; 140/90
• Wheels
  1.60 x 21"; 2.15 x 18"
• Wheels
  Spoked wheels with aluminium rims
• Wheelbase
  1489 ± 10 mm
