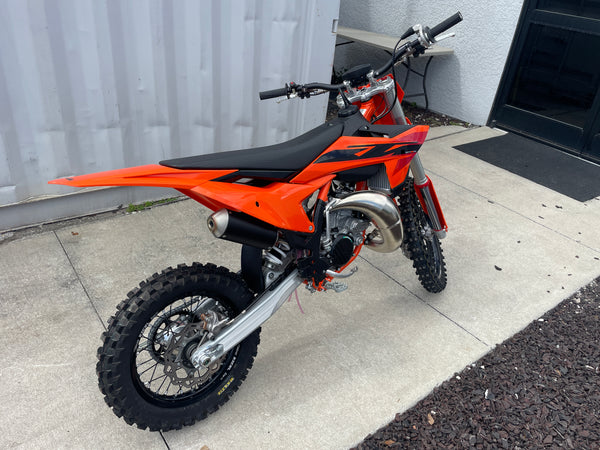

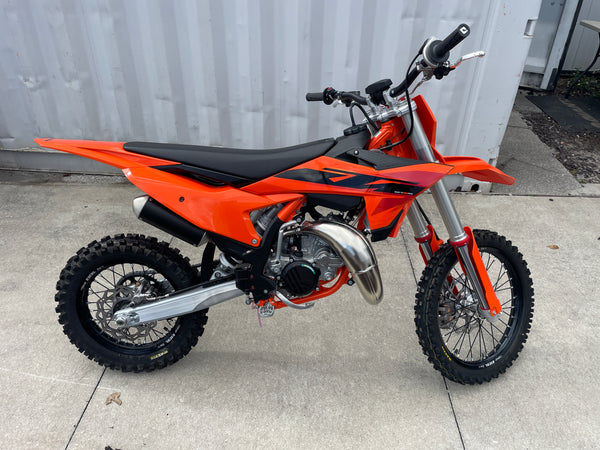

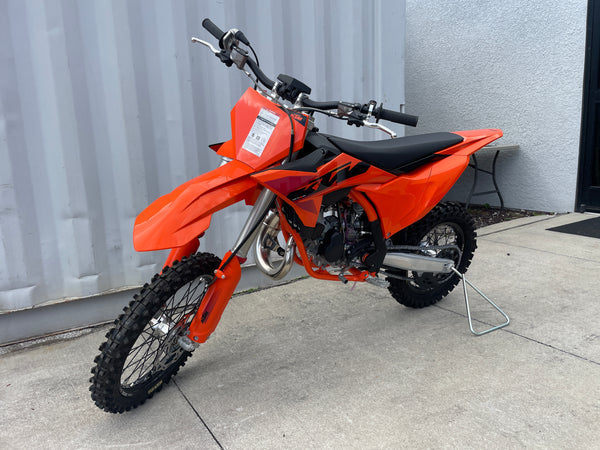

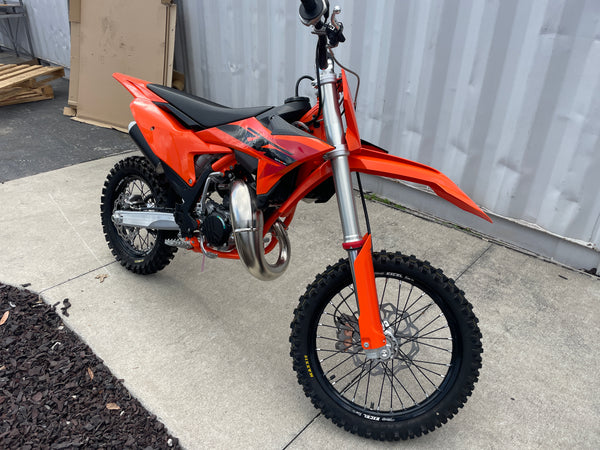

2025 KTM 85 SX 17/14

The 2025 KTM 85 SX 17/14 is a high-performance motocross bike designed for young riders looking to step up their game. With race-ready components, a lightweight chassis, and powerful two-stroke performance, it delivers an ideal blend of agility and speed.

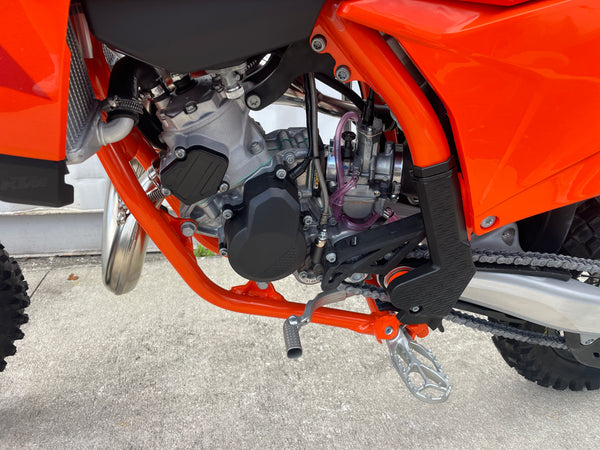

Engine & Performance

• Type: 1-cylinder, 2-stroke
• Displacement: 84.9 cm³
• Bore x Stroke: 47 mm x 48.95 mm
• Starter: Kickstart
• Transmission: 6-speed
• Clutch: Wet, multi-disc, Formula hydraulics
• Carburetor: Keihin PWK 28

Chassis & Suspension

• Frame: Central-tube frame with a double-cradle design
• Front Suspension: WP XACT 43 mm USD fork, 278 mm travel
• Rear Suspension: WP XACT PDS mono shock, 289 mm travel
• Subframe: Aluminum-reinforced polyamide

Dimensions & Ergonomics

• Wheelbase: 1,282 mm
• Ground Clearance: 308 mm
• Seat Height: 845 mm
• Fuel Tank Capacity: 5.4 liters
• Weight: 68 kg (without fuel)

Braking & Wheels

• Front Brake: 240 mm disc
• Rear Brake: 220 mm disc

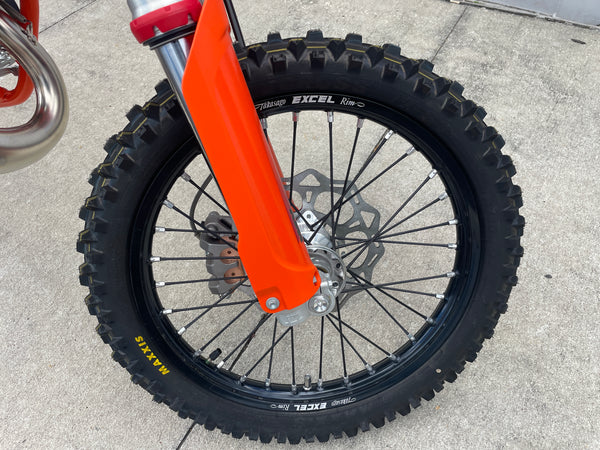

• Front Wheel: 17 inches with 70/100 tire
• Rear Wheel: 14 inches with 90/100 tire

Additional Features

• Handlebars: Tapered aluminum (Ø 28/22 mm)
• Chain: 428 non-sealed

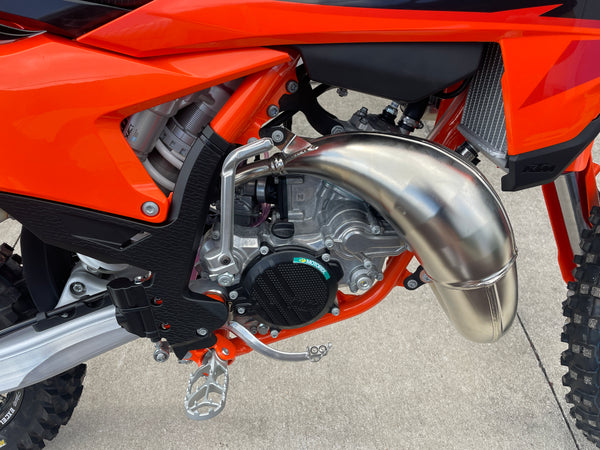

• Exhaust: Aluminum silencer

Designed to dominate the track, the 2025 KTM 85 SX 17/14 delivers premium handling, top-tier suspension, and a power-packed two-stroke engine to keep young racers ahead of the competition.
