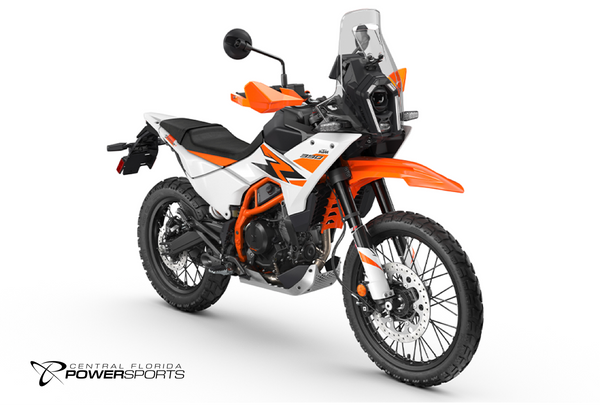

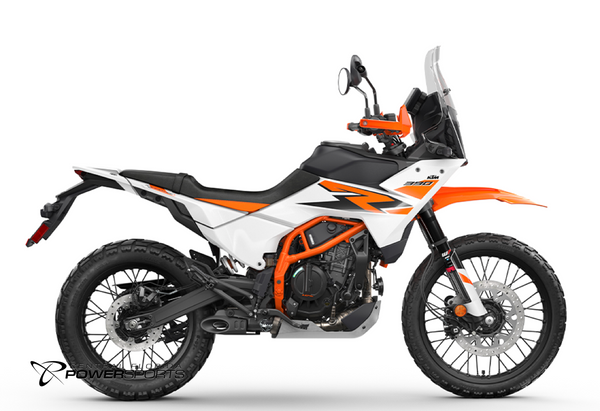

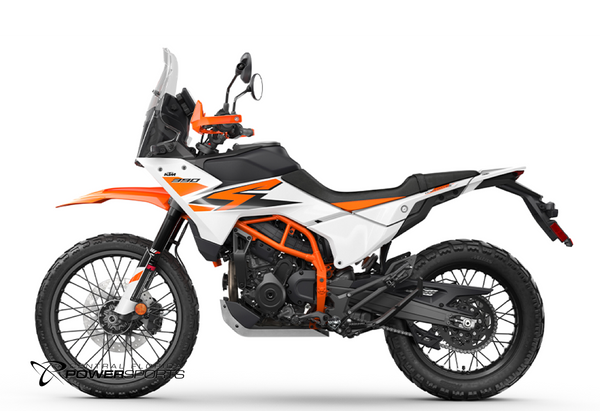

2025 KTM 390 Adventure R

SUPREMELY CAPABLE

We have to say it - the KTM 390 ADVENTURE R is the most off-road capable middleweight adventure bike in its segment. Yes, it's a bold claim, but with a 399cc powerplant, true rally-inspired design, 230 mm adjustable suspension, and a 21/18"" wheel split, this new addition to the KTM R stable simply rewrites the rulebook.

TECHNICAL DETAILS

ENGINE

• Primary drive
  86:33
• Torque
  39 Nm
• Transmission
  6-speed
• Cooling
  Liquid cooled
• Secondary gear ratio
  46:14
• Power in KW
  33 kW
• Power
  45 PS
• Starter
  Electric starter
• Stroke
  64 mm
• Traction control
  MTC (lean angle sensitive, disengageable)
• Bore
  89 mm
• Clutch
  PASC slipper clutch, mechanically operated
• CO2 emissions
  79 g/km
• Compression ratio
  12.6
• Displacement
  398.7 cm³
• EMS
  Bosch EMS with RBW
• Engine oil
  Motorex Formula 4T 15W/50
• Design
  1-cylinder, 4-stroke engine
• Fuel-mixture generation
  Bosch EFI (throttle valve 46 mm)
• Lubrication
  Wet sump
• Weight (without fuel)
  165 kg
• Tank capacity (approx.)
  14 l
• Wheelbase
  1481 mm
• Front brake disc diameter
  320 mm
• Rear brake disc diameter
  240 mm
• Front brake
  Floating disk, Bybre radial calipers with 2 pistons
• Rear brake
  ByBre, single-piston, floating caliper, brake disc
• Chain
  520 X-Ring
• Frame design
  Steel trellis frame, powder coated
• Front suspension
  WP APEX 43
• Ground clearance
  272 mm
• Handlebar
  Aluminum
• Rear suspension
  WP APEX Split Piston
• Seat height
  870 mm
• Steering head angle
  62.9 °
• Rear subframe design
  Steel trellis frame, powder coated
• Trail
  110 mm
• Tyre dimensions (front/rear)
  90/90; 140/80
• Wheels
  1.85 x 21"; 2.5 x 18"
• Front wheel diameter
  21 "
• Rear wheel diameter
  18 "
• Front wheel width
  1.85 "
• Rear wheel width
  2.5 "
