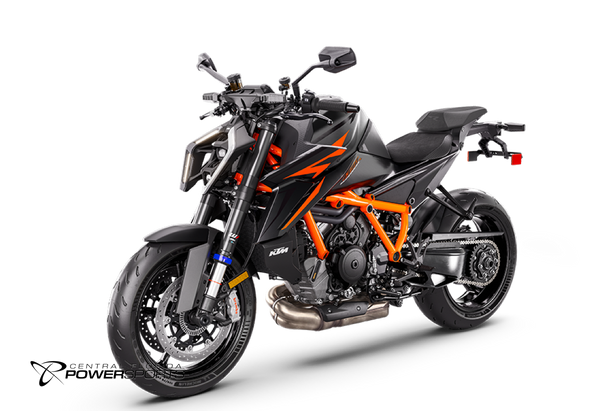

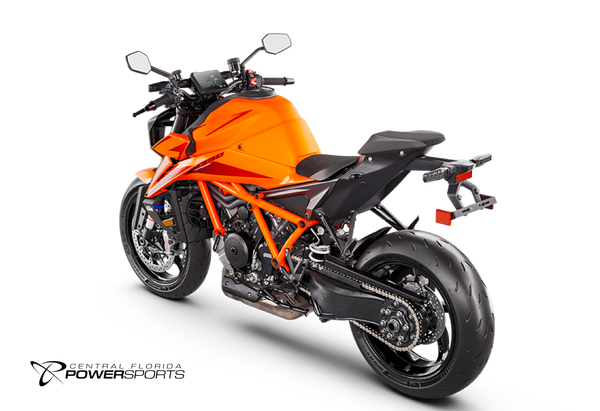

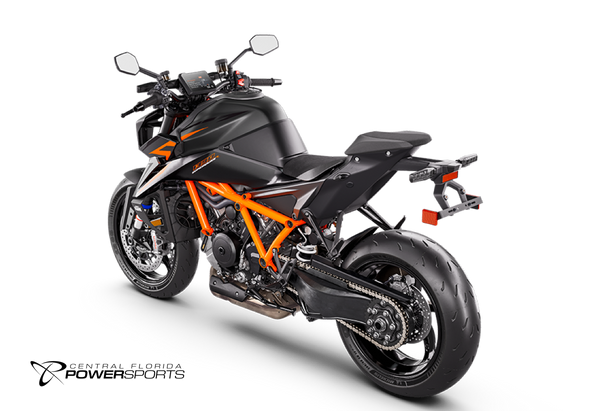

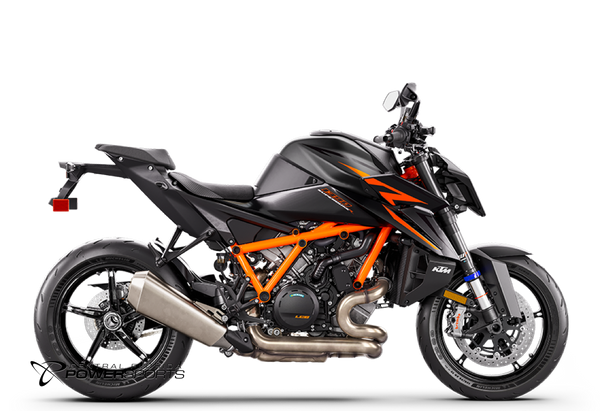

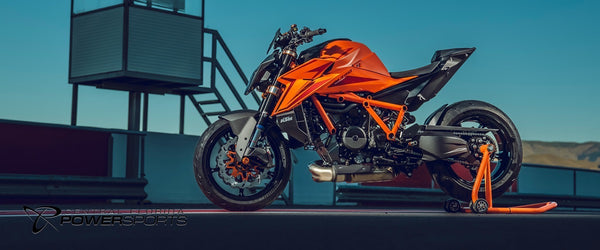

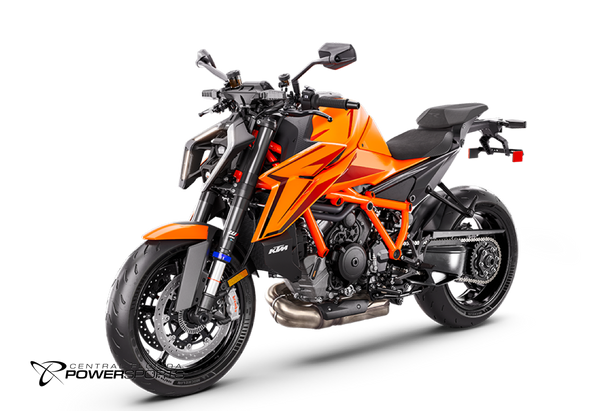

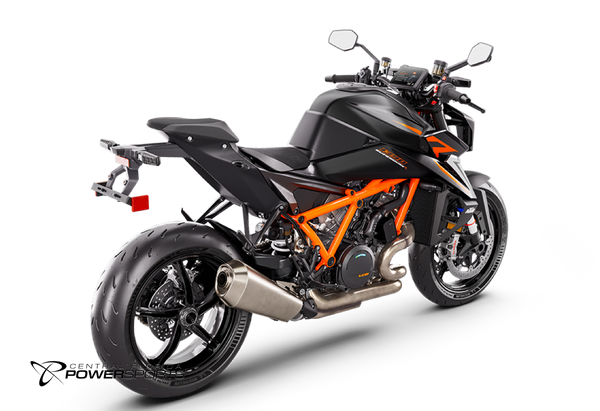

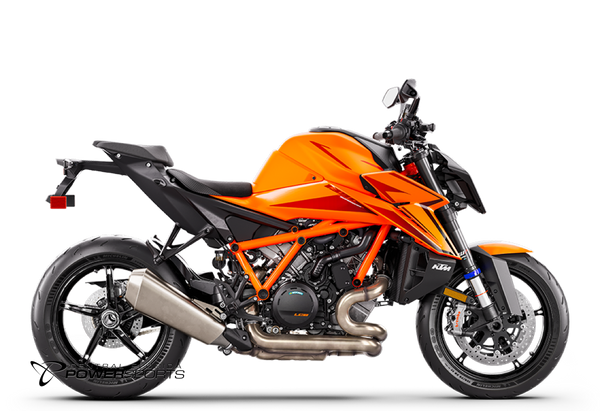

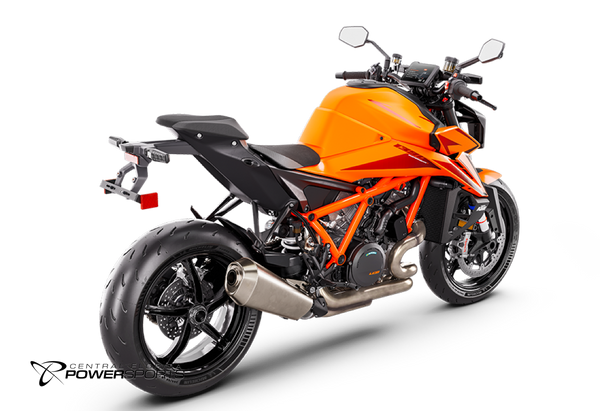

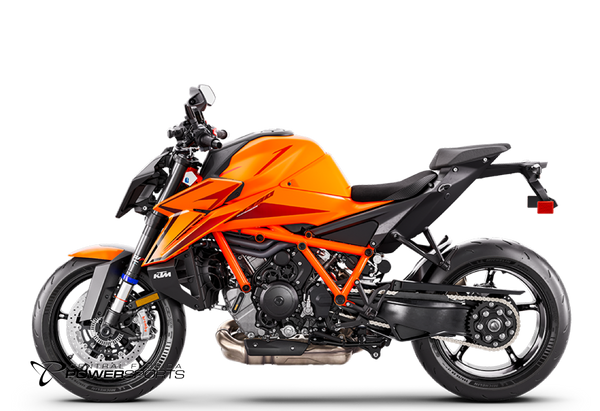

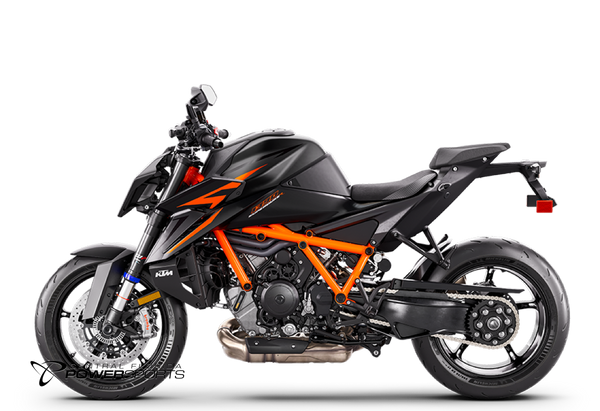

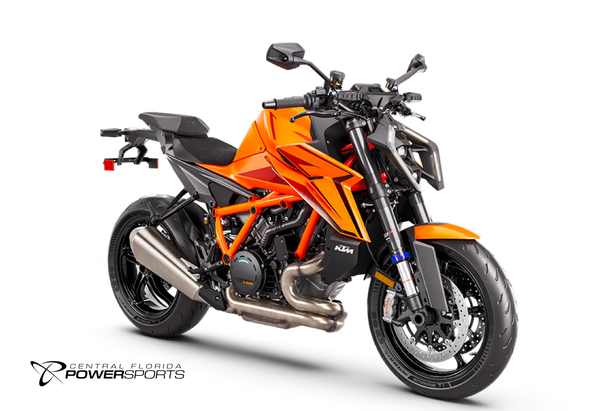

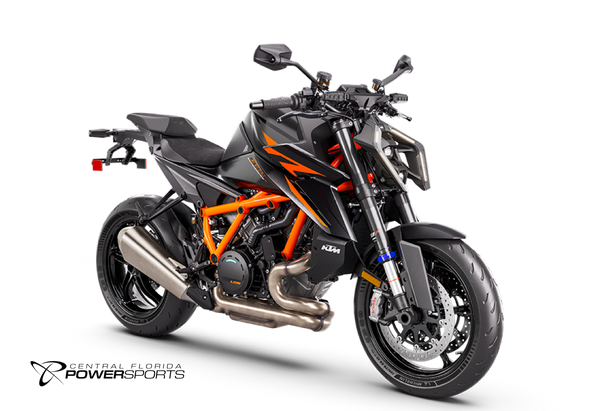

2026 KTM 1390 Super Duke R EVO

THE BEAST. EVOLVED.

The KTM 1390 SUPER DUKE R EVO is truly an evolved BEAST. Not only does it share the same advancement as the all-new KTM 1390 SUPER DUKE R, but it also brings intuitive WP Semi-Active Suspension Technology (SAT) to the fore. Being able to automatically adapt its suspension to the riders input or the road surface, it brings intelligence to the tarmac and into the hunt.

TECHNICAL DETAILS

• Design
  2-cylinder, 4-stroke, V 75°
• Displacement
  1350 cm³
• Power
  190 PS
• Torque
  145 Nm
• Transmission
  6-speed
• CO2 emissions
  139 g/km
• Cooling
  Liquid cooled with water/oil heat exchanger
• Engine cylinder
  Twin cylinder
• EMS
  Keihin EMS with RBW and cruise control, double ignition
• Engine oil
  Motorex, SAE 10W-50
• Engine stroke
  4-Stroke
• Silencer
  Stainless steel primary and secondary silencer with two catalytic converters
• Front brake disc diameter
  320 mm
• Rear brake disc diameter
  240 mm
• Front brake
  2 x Brembo Stylema Monobloc four piston, radially mounted caliper
• Rear brake
  Brembo twin-piston fixed calliper, brake disc
• Chain
  525 X-Ring
• Frame design
  Chromium-Molybdenum-Steel trellis frame, powder coated
• Steering head angle
  65.3 °
• Rear subframe design
  Cast aluminium / Composite
• Trail
  101 mm
• Wheelbase
  1491 mm
• Front suspension
  WP APEX-USD Ø 48 mm, semi-active (Gen 3)
• Rear suspension
  WP APEX-linkage shock, semi-active (Gen 3)
• Suspension travel (front)
  125 mm
• Suspension travel (rear)
  140 mm
• Front suspension addition
  Semi-active
• Rear suspension addition
  Semi-active, electronic preload
• Seat height
  834 mm
• Wheelbase
  1491 ± 15 mm
• Tank capacity (approx.)
  17.5 l
• Ground clearance
  149 mm
• Weight (without fuel)
  200 kg
• Weight fully fueled
  212 kg
• Wheelbase tolerance
  15 mm
• Front wheel diameter
  17 "
• Rear wheel diameter
  17 "
• Front wheel width
  3.50 "
• Rear wheel width
  6 "
• Wheels
  3.50 x 17"; 6 x 17"
• Wheels
  Cast aluminium wheels
