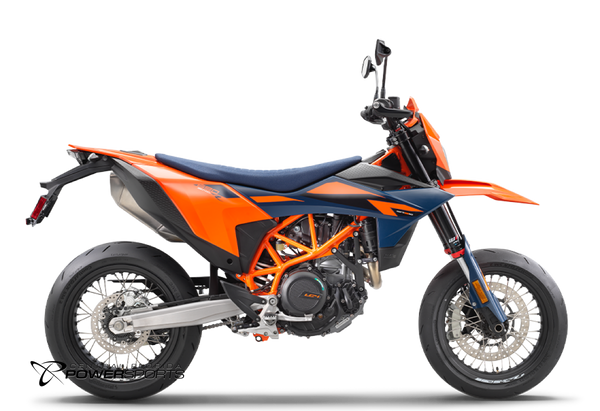

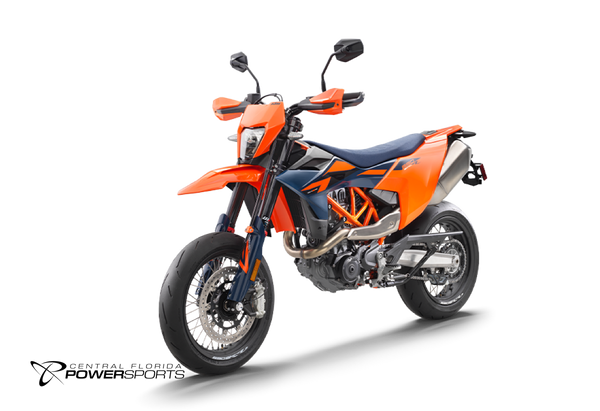

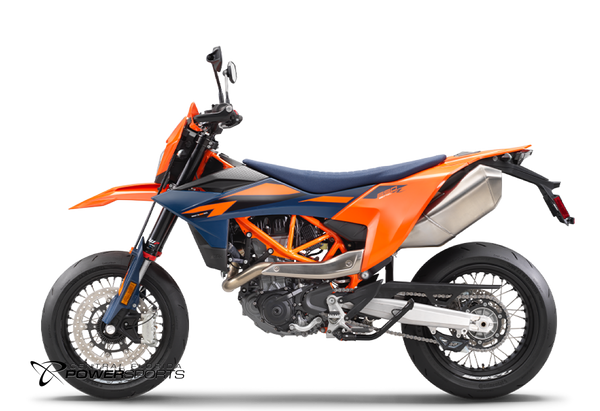

2026 KTM 690 SMC R

STOP GROWING UP

The KTM 690 SMC R obliterates the competition, proving itself as the undisputed king of its class. Providing the rider with agile handling, best-in-class power, and rider focused ergonomics, the KTM 690 SMC R embodies the notion of READY TO RACE with 110% dedication to its craft. From sliding into corners, power-wheelies over crests, and hard blasts through tight mountain passes, the King of supermoto for the street is on the attack.

• Design
  1-cylinder, 4-stroke engine
• Displacement
  692.7 cm³
• Power
  79 PS
• Torque
  73 Nm
• Transmission
  6-speed
• CO2 emissions
  96 g/km
• Cooling
  Liquid cooled
• Engine cylinder
  Single cylinder
• EMS
  Keihin EMS with RBW, twin ignition
• Engine oil
  Motorex Power Synth SAE 10W-50
• Engine stroke
  4-Stroke
• Front suspension
  WP APEX 48
• Rear suspension
  WP APEX with Pro-Lever linkage
• Brake disc diameters (front/rear)
  300 / 240 mm
• Front brake disc diameter
  300 mm
• Rear brake disc diameter
  240 mm
• Front brake
  Disc brake
• Rear brake
  Disc brake
• Chain
  520 X-Ring
• Frame design
  Chromium-Molybdenum steel trellis frame, powder coated
• Front suspension adjustment
  Compression and rebound adjustable
• Silencer
  Stainless steel primary and secondary silencer
• Steering head angle
  63.6 °
• Rear subframe design
  Self-supporting plastic tank
• Trail
  110 mm
• Wheelbase
  1476 mm
• Front suspension
  WP APEX 48
• Rear suspension
  WP APEX with Pro-Lever linkage
• Suspension travel (front)
  224 mm
• Suspension travel (rear)
  240 mm
• Front suspension adjustment
  Compression and rebound adjustable
• Rear suspension addition
  Preload adjuster
• Seat height
  899 mm
• Wheelbase
  1476 ± 15 mm
• Tank capacity (approx.)
  13.3 l
• Ground clearance
  37 mm
• Weight (without fuel)
  153.5 kg
• Weight fully fueled
  162 kg
• Wheelbase tolerance
  15 mm
• Front wheel diameter
  17 "
• Rear wheel diameter
  17 "
• Front wheel width
  3.5 "
• Rear wheel width
  5 "
• Wheels
  3.5 x 17"; 5 x 17"
