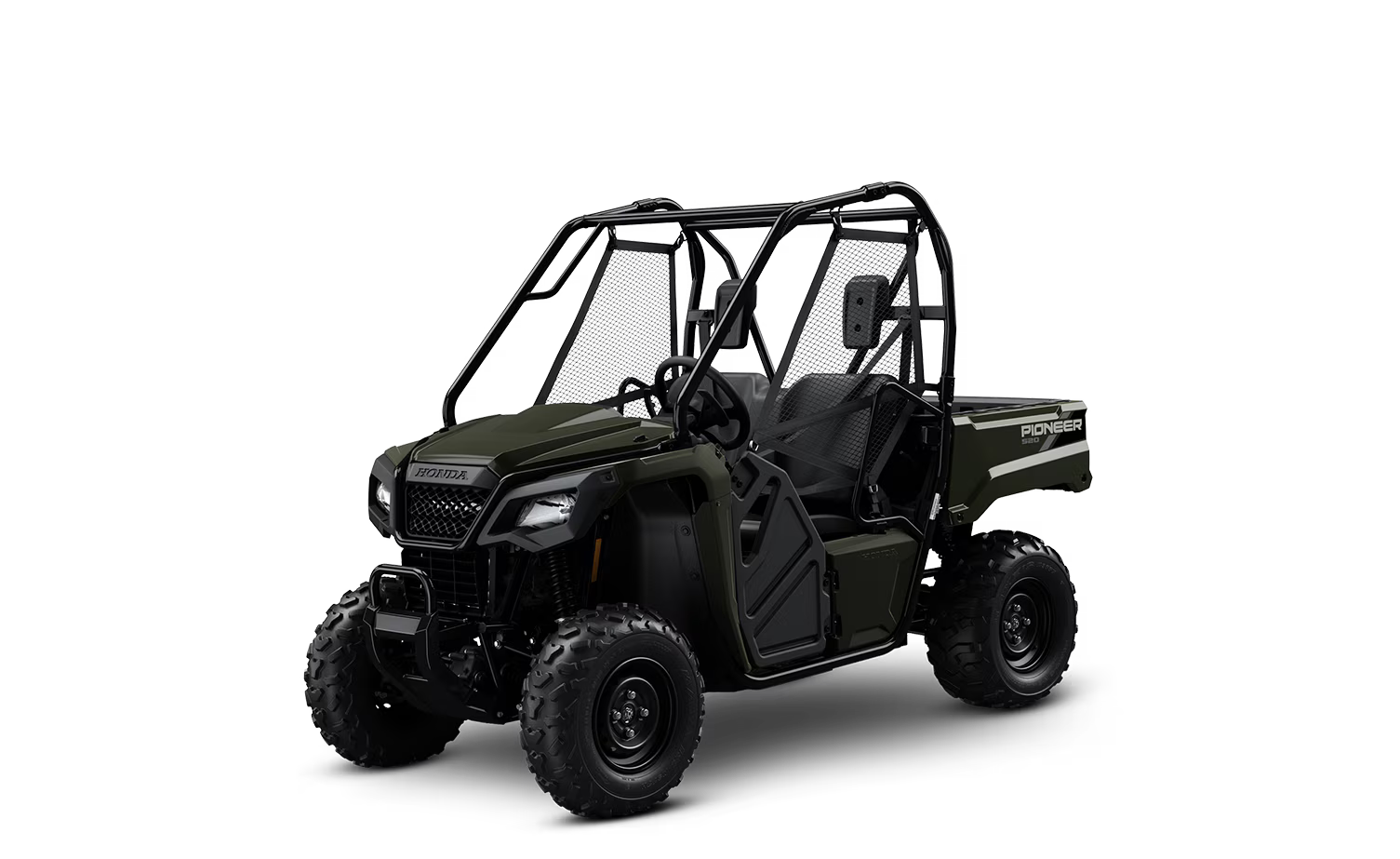

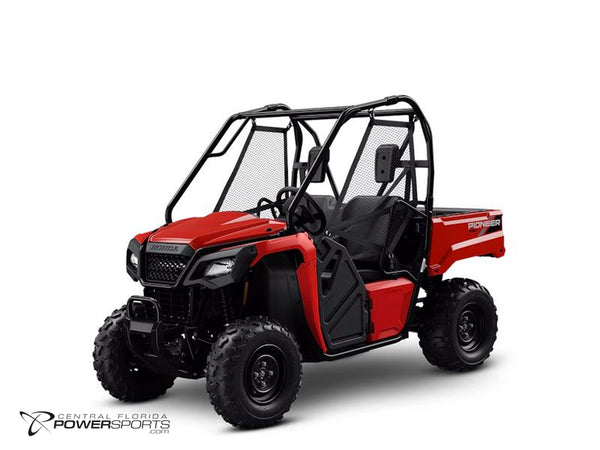

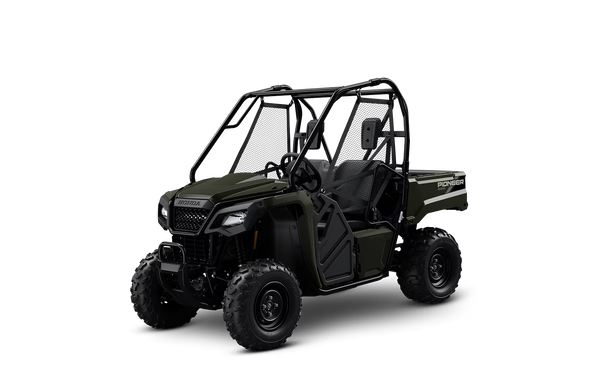

2026 Honda Pioneer 520
$ 10,999.00
Destination Charge: $885
The 2026 Honda Pioneer 520 Powered by a 518 / 31.6 engine with manual / automatic clutch transmission and selectable 4x2 / 4x4 drivetrain.
Specifications
| Ground Clearance | 8.5 / 215.9 |
| Fuel Capacity | 4.1 / 15.5 |
| Towing Capacity | 1000 / 453.6 |
| Engine Type | Single-Cylinder |
| Cylinders | 1 |
| Engine Stroke | 4-Stroke |
| Cooling | Liquid |
| Compression Ratio | 9.5:1 |
| Carburetion Type | Fuel Injected |
| Bore | 96 / 3.78 |
| Stroke | 2.81 / 71.5 |
| Displacement | 518 / 31.6 |
| Transmission Type | Manual / Automatic Clutch |
| Number Of Speeds | 5 |
| Primary Drive | Shaft / Shaft |
| Driveline Type | Selectable 4X2 / 4X4 |
| Length | 105 / 2667 |
| Width | 50 / 1270 |
| Height | 71.2 / 1808.5 |
| Wheelbase | 73 / 1854.2 |
| Wet Weight | 1060 / 481 |
| Front Suspension Type | Independent Double Wishbone |
| Rear Suspension Type | Independent Double Wishbone |
| Front Travel | 5.8 / 147.3 |
| Rear Travel | 5.9 / 149.9 |
| Front Tire | Maxxis® 24 x 8-12 |
| Rear Tire | Maxxis® 24 x 10-12 |
| Front Brake Type | Dual Hydraulic Disc |
| Rear Brake Type | Hydraulic Disc |
| Seat Height | 27.7 / 703.6 |
