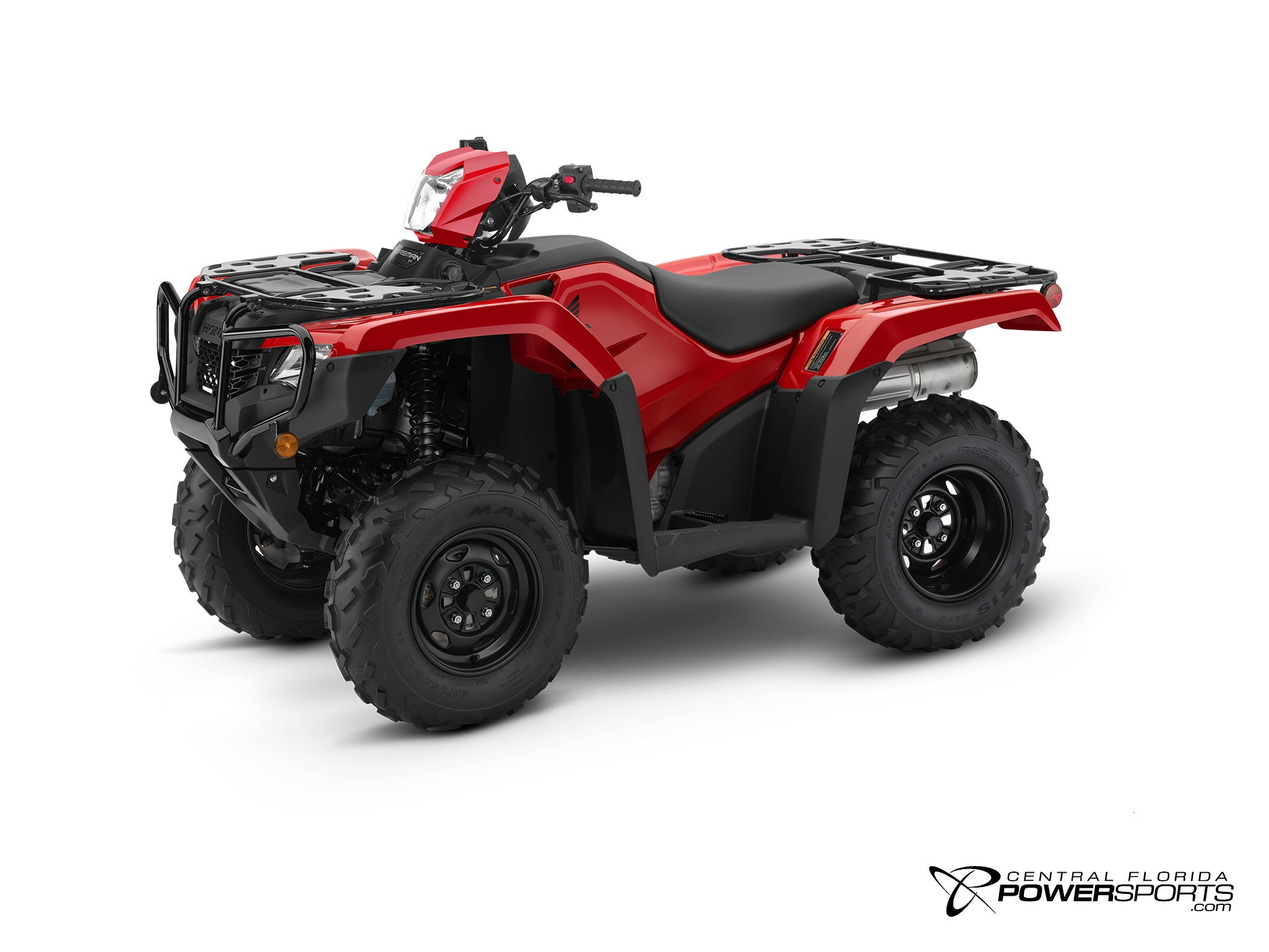

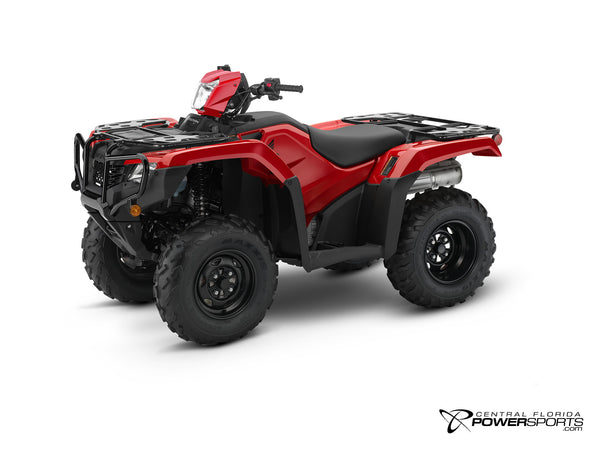

2027 Honda FourTrax Foreman 4x4 EPS

The 2027 Honda FourTrax Foreman 4x4 EPS is the 518cc utility ATV with four-wheel drive and electric power steering. Seat height is 34.5 inches and the published curb weight is 648 pounds.

The 2026 Foreman 4x4 is the same five-speed layout without electric power steering, listed at 635 pounds. Both use a torque-sensitive locking front differential and 7.3 inches of front travel. This page is the EPS model.

Specifications

• Engine Type
  518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
• Bore And Stroke
  96.0mm x 71.5mm
• Compression Ratio
  9.5:1
• Valve Train
  OHV; two valves per cylinder
• Induction
  Programmed Fuel Injection system (PGM-FI); 36mm throttle body
• Starter
  Electric with optional auxiliary recoil
• Transmission
  Five-speed with reverse
• Driveline
  Direct front and rear driveshafts with torque-sensitive locking front differential
• Front Suspension
  Independent double-wishbone; 7.3-inch travel
• Rear Suspension
  Swingarm with single shock; 7.3-inch travel
• Steering
  Electric Power Steering (EPS)
• Front Brakes
  Dual 190mm discs
• Rear Brake
  160mm drum
• Front Tires
  25 x 8-12
• Rear Tires
  25 x 10-12
• Length
  82.9 inches
• Width
  47.4 inches
• Height
  47.8 inches
• Wheelbase
  50.0 inches
• Seat Height
  34.5 inches
• Ground Clearance
  7.5 inches
• Curb Weight
  648 pounds (includes all standard equipment, required fluids and a full tank of fuel)
• Fuel Capacity
  3.9 gallons
• Turning Radius
  10.5 feet
• Towing Capacity
  848 pounds
• Front Rack Capacity
  88.0 pounds
• Rear Rack Capacity
  176.0 pounds
• Available Colors
  Hero Red, Black Forest Green, TrueTimber® Atera Camo
• Model ID
  TRX520FM2
• Emissions
  Meets current EPA and CARB (California) off-road emissions standards.
• Important Safety Information
  Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
• Duration
  Transferable, one year included, limited warranty
• Optional Extended
  Extended coverage available with a HondaCare® Protection Plan
