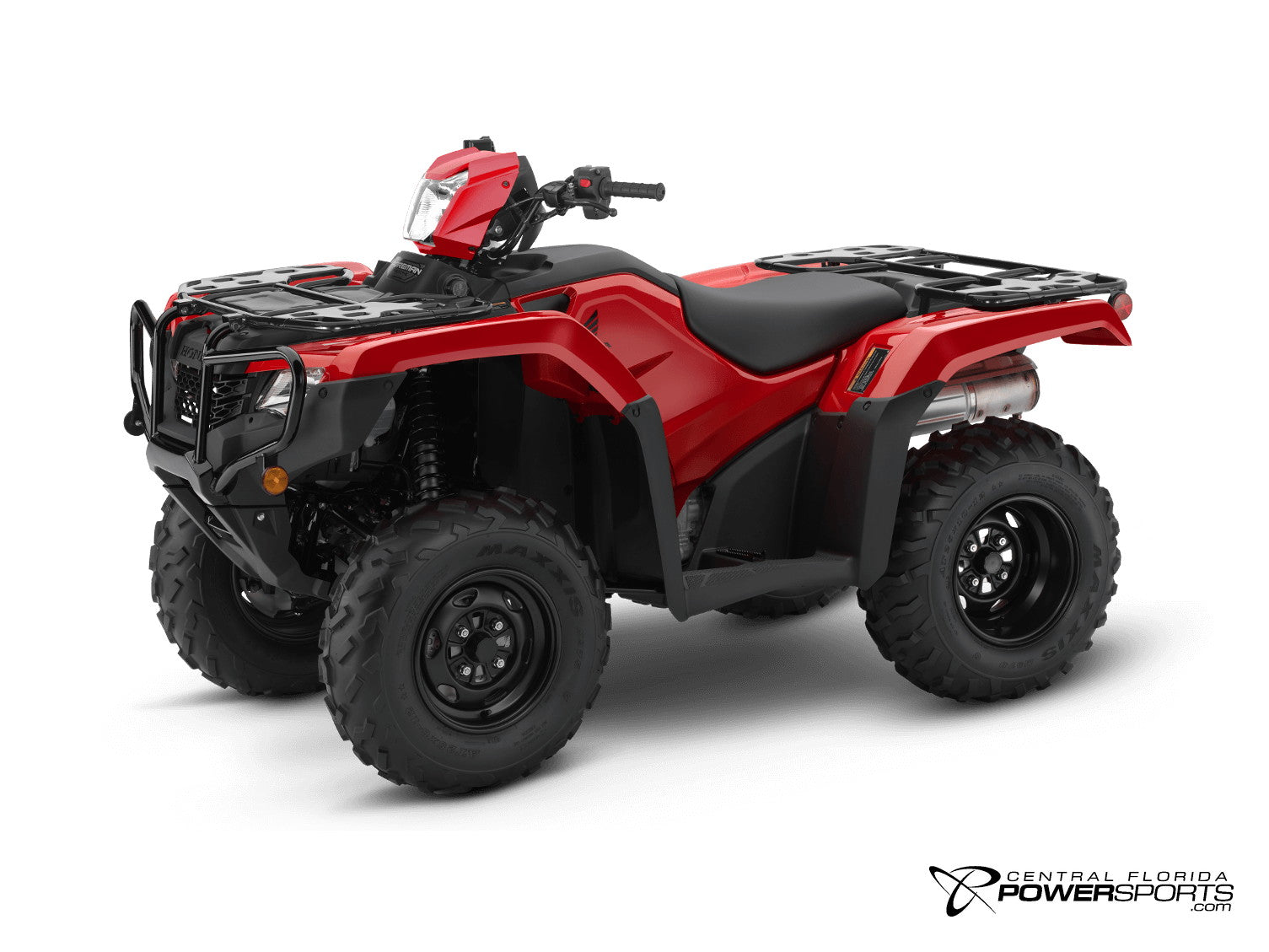

2026 Honda FourTrax Foreman 4x4

The 2026 Honda FourTrax Foreman 4x4 is the larger manual-shift utility ATV, with a 518cc liquid-cooled single, a five-speed with reverse, and four-wheel drive. Seat height is 34.5 inches and the published curb weight is 635 pounds.

This Foreman does not include electric power steering. The 2027 Foreman 4x4 EPS page is the one with that feature, and it is listed at 648 pounds. Both use a torque-sensitive locking front differential and 7.3 inches of front travel.

Specifications

• Engine Type
  518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
• Bore And Stroke
  96.0mm x 71.5mm
• Compression Ratio
  9.5:1
• Valve Train
  OHV; two valves per cylinder
• Induction
  Programmed Fuel Injection system (PGM-FI); 36mm throttle body
• Starter
  Electric with optional auxiliary recoil
• Transmission
  Five-speed with reverse
• Driveline

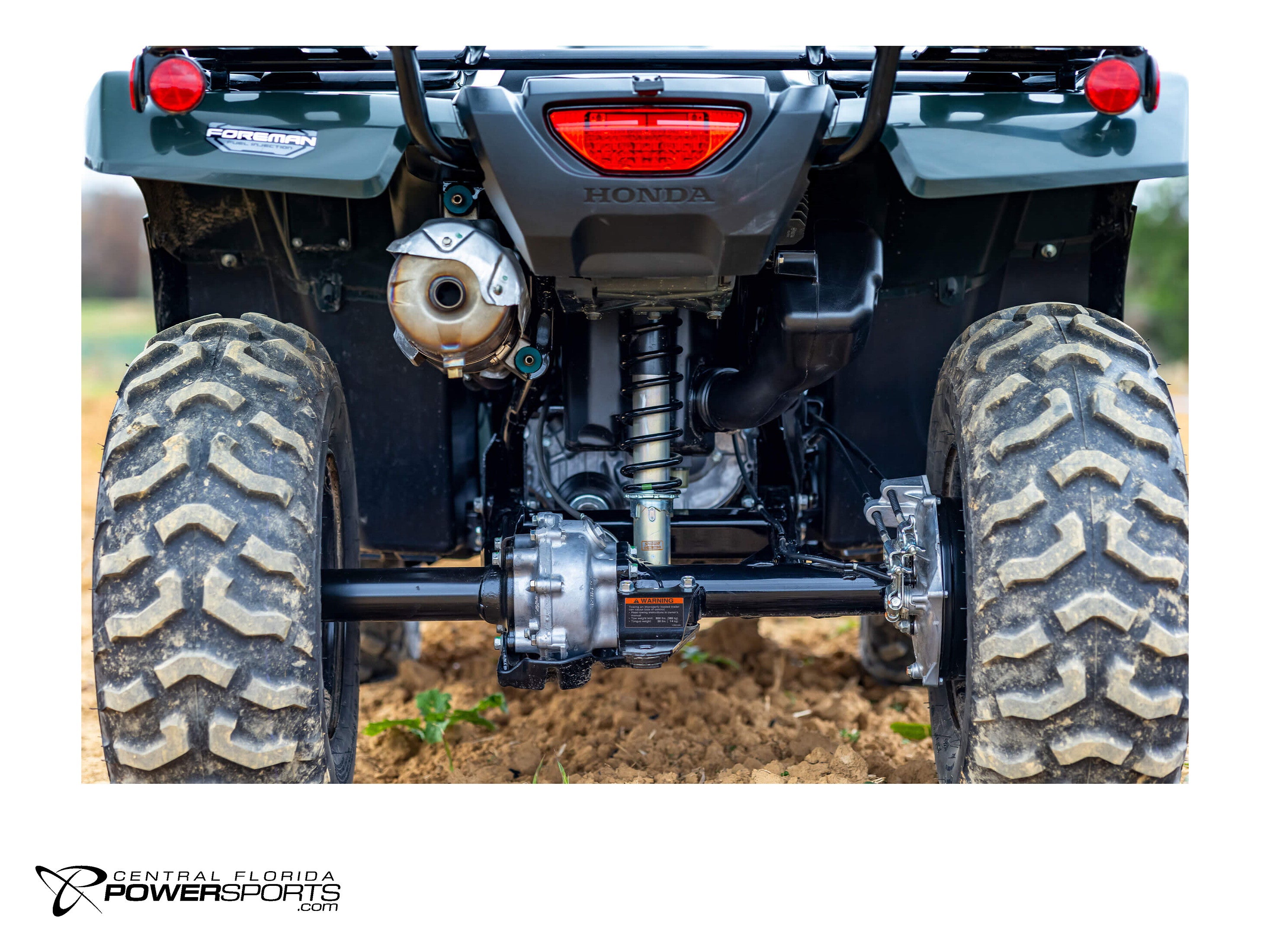

  Direct front and rear driveshafts with torque-sensitive locking front differential
• Front Suspension
  Independent double-wishbone; 7.3-inch travel
• Rear Suspension
  Swingarm with single shock; 7.3-inch travel
• Front Brakes
  Dual 190mm discs
• Rear Brake
  160mm drum
• Front Tires
  25 x 8-12
• Rear Tires
  25 x 10-12
• Length
  82.9 inches
• Width
  47.4 inches
• Height
  47.8 inches
• Wheelbase
  50.0 inches
• Seat Height
  34.5 inches
• Ground Clearance
  7.5 inches
• Curb Weight
  635 pounds (includes all standard equipment, required fluids and a full tank of fuel)
• Fuel Capacity
  3.9 gallons, including 1.3-gallon reserve
• Turning Radius
  10.5 feet

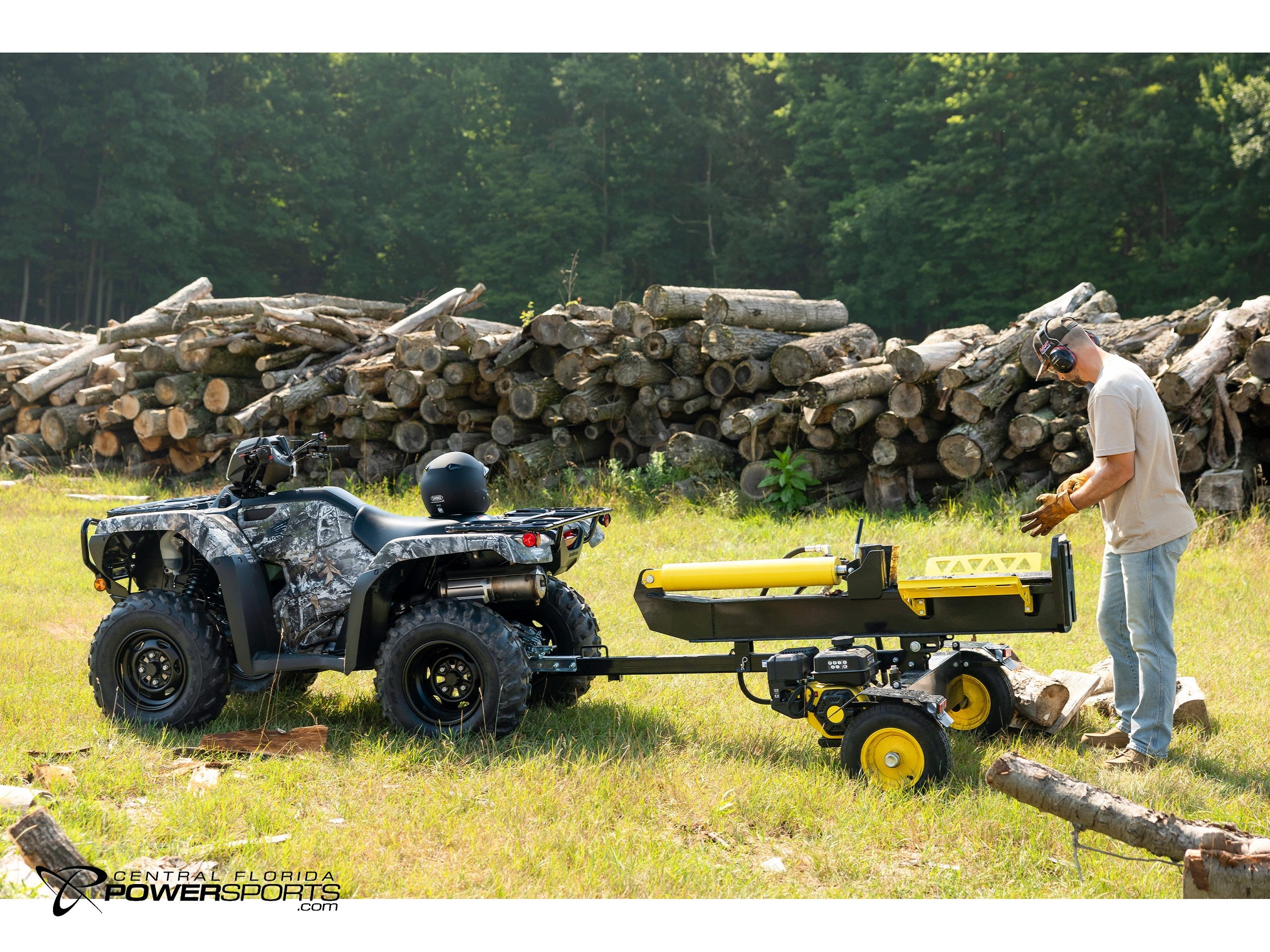

• Towing Capacity
  848 pounds
• Front Rack Capacity
  88.0 pounds
• Rear Rack Capacity
  176.0 pounds
• Available Colors
  Hero Red, Black Forest Green, TrueTimber Atera Camo
• Model ID
  TRX520FM1
• Emissions
  Meets current EPA and CARB (California) off-road emissions standards.
• Important Safety Information
  Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
• Duration
  Transferable, one year included, limited warranty
• Optional Extended
  Extended coverage available with a HondaCare Protection Plan
