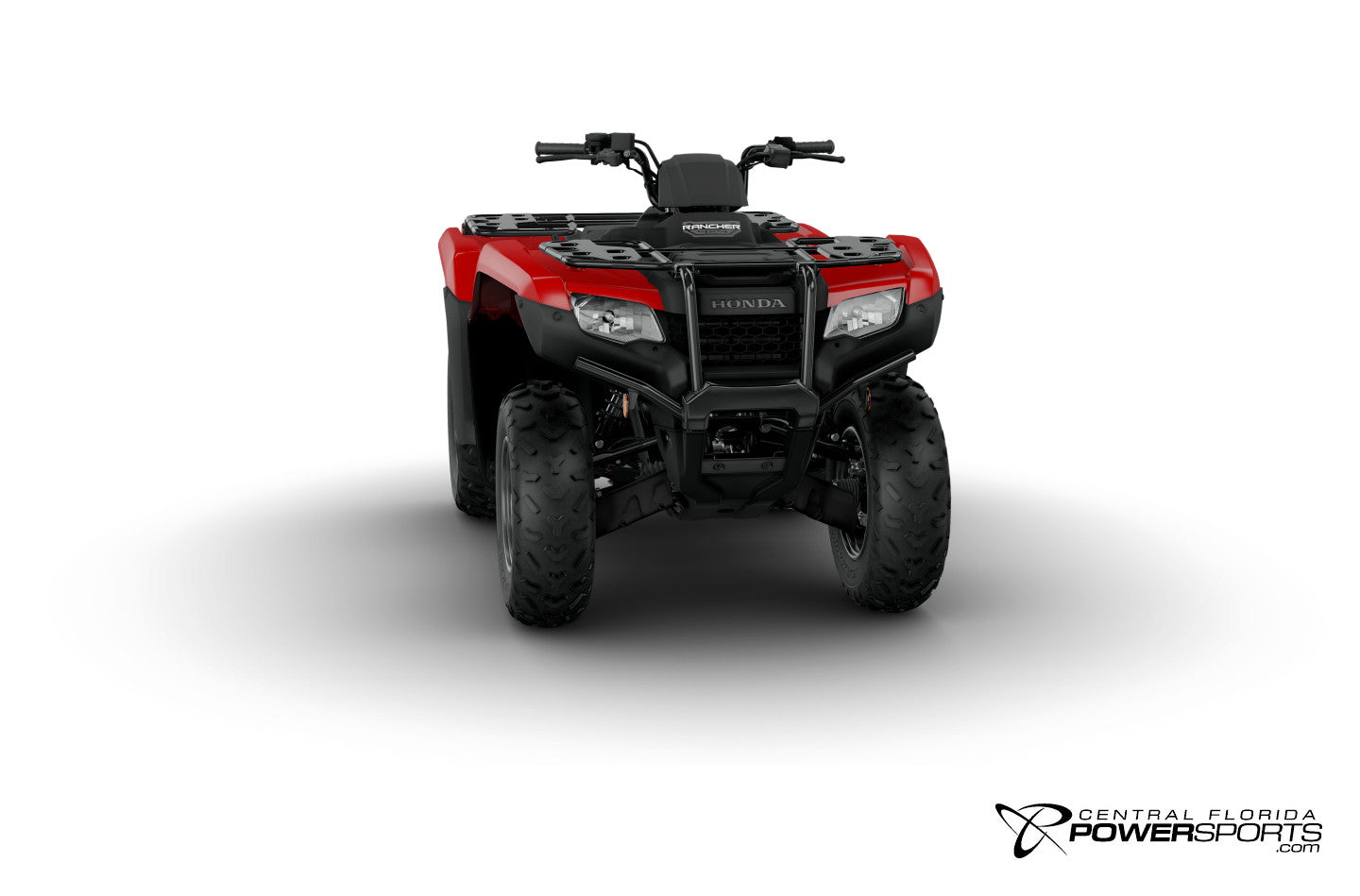

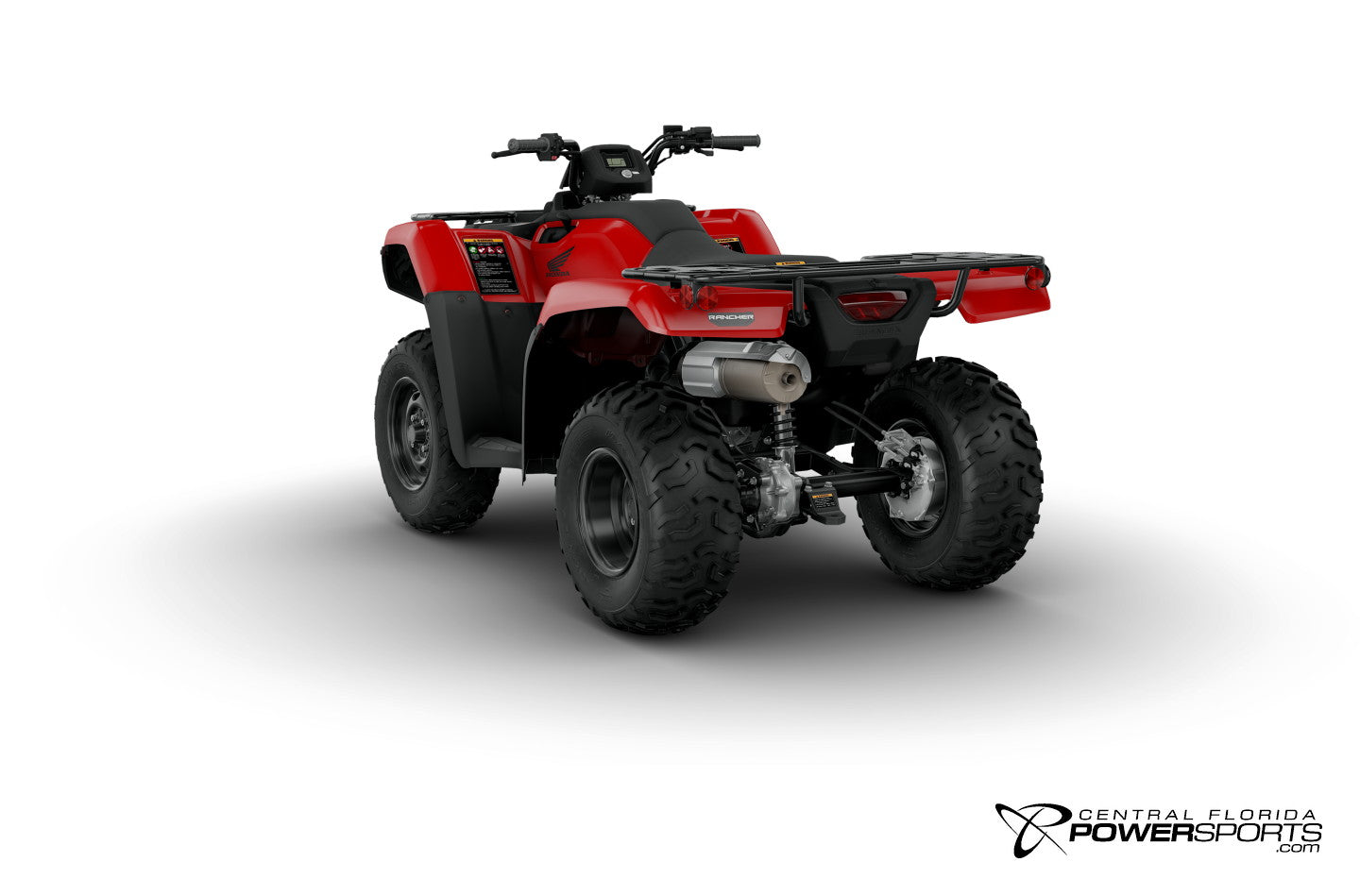

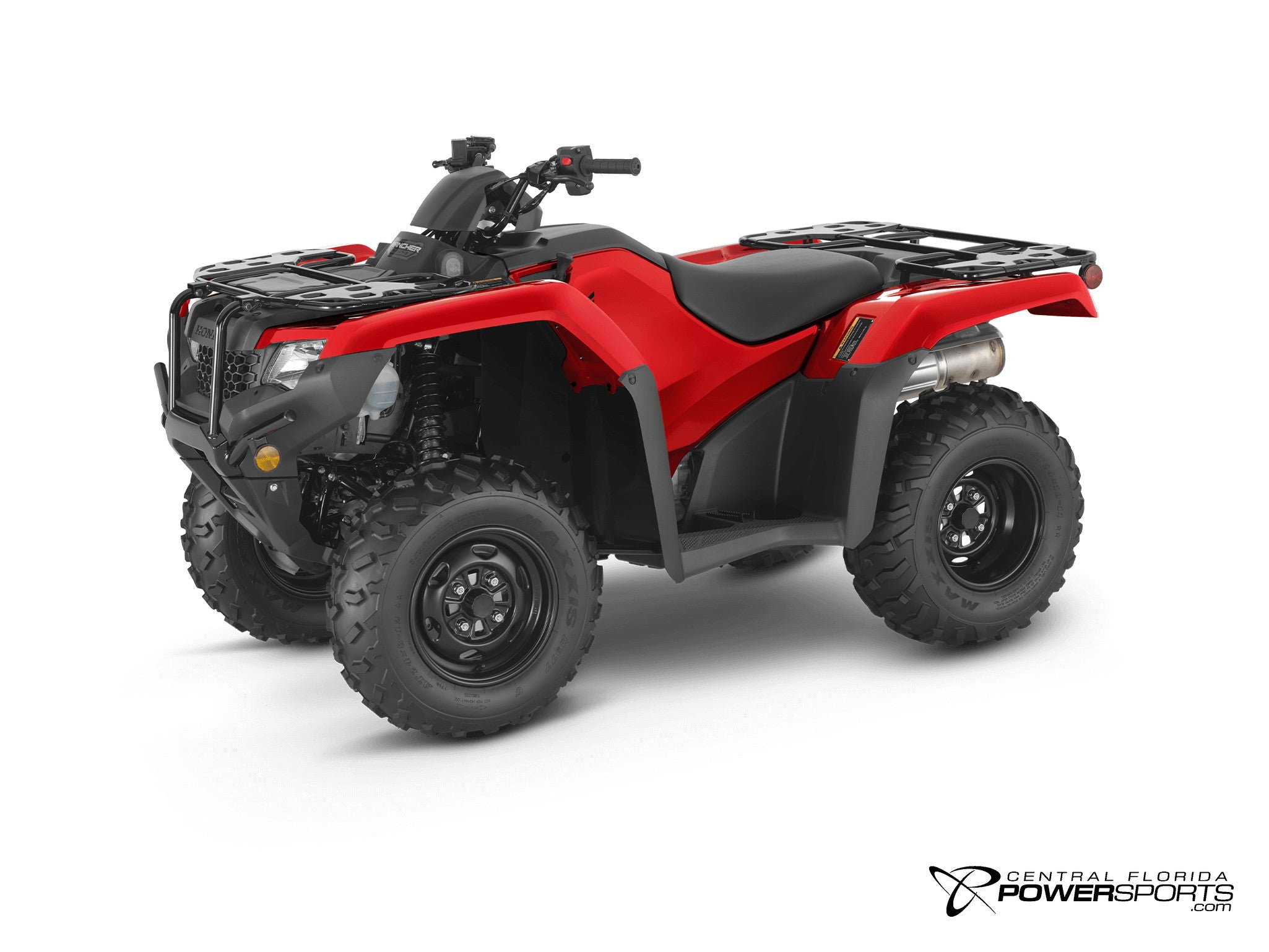

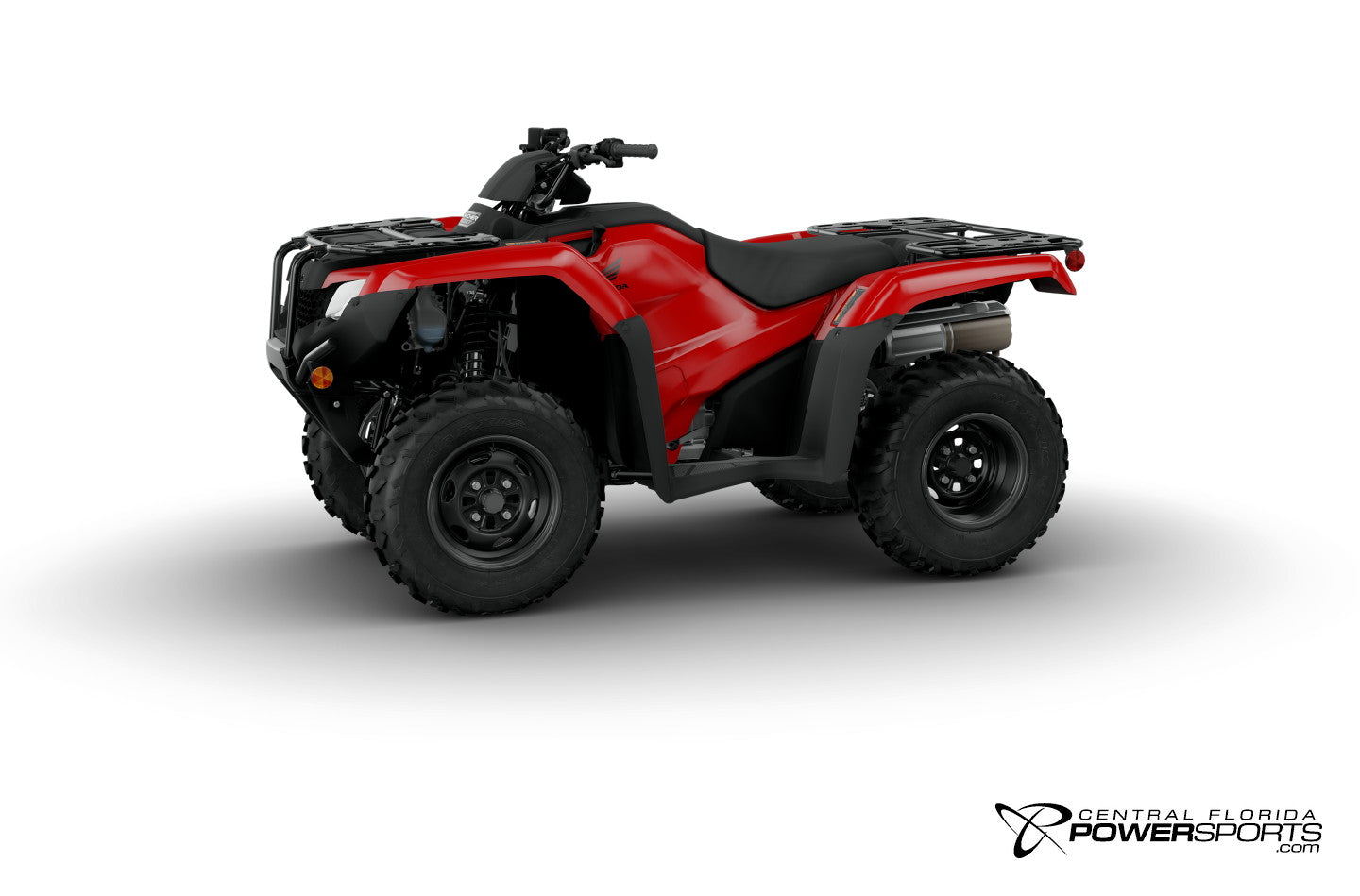

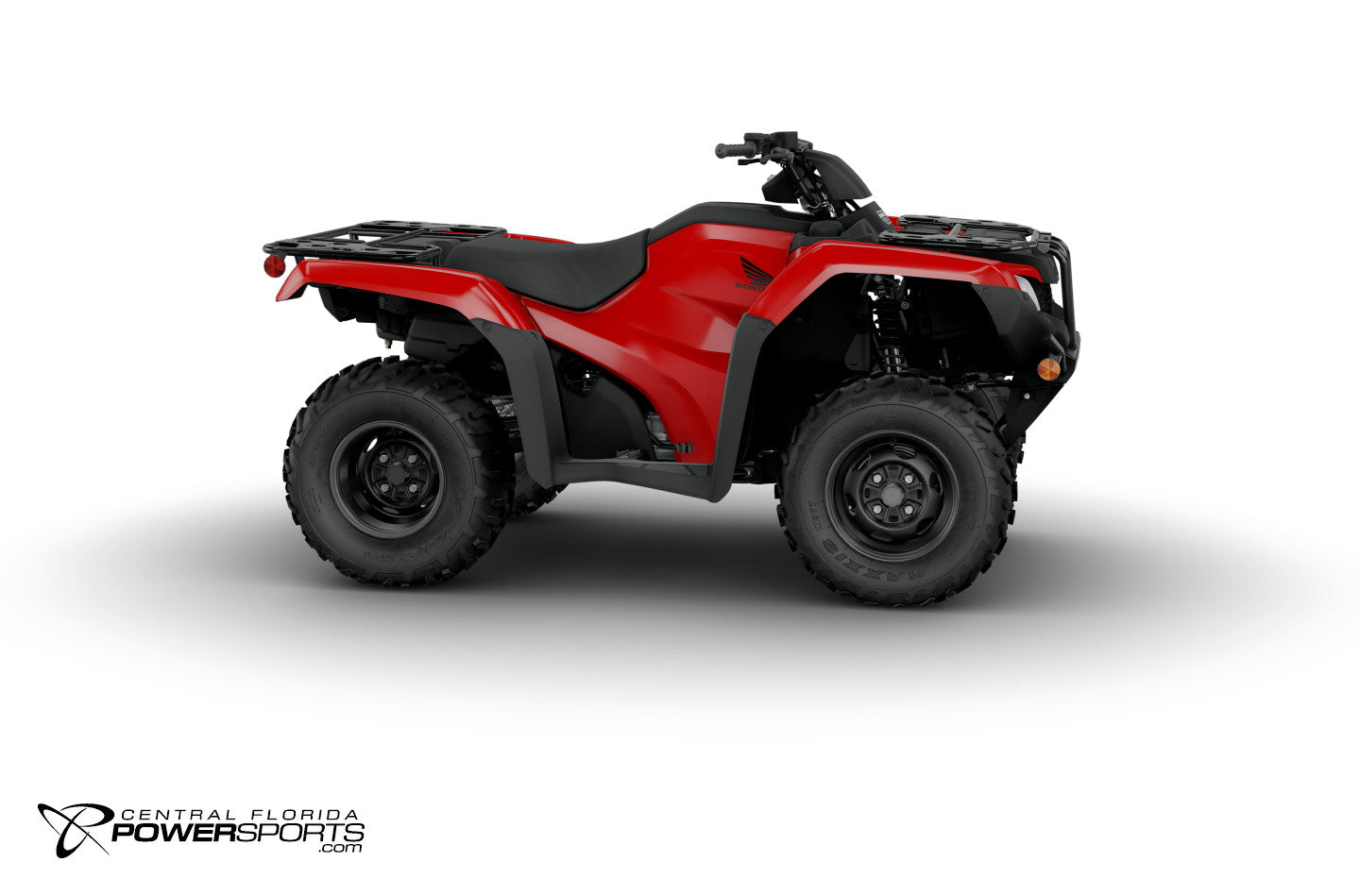

2026 Honda FourTrax Rancher 4x4

The 2026 Honda FourTrax Rancher 4x4 is the foot-shift utility ATV, with a 420cc liquid-cooled single and a five-speed with reverse. Seat height is 33.6 inches and the published curb weight is 615 pounds.

Front suspension travel is 6.7 inches. This is not the Dual-Clutch Transmission model and it does not have independent rear suspension. That combination is the Rancher 4x4 Automatic DCT IRS EPS, listed at 686 pounds with a 35.4-inch seat.

Specifications

• Engine Type
  420cc liquid-cooled longitudinally mounted single-cylinder four-stroke
• Bore And Stroke
  86.5mm x 71.5mm
• Compression Ratio
  9.9:1
• Valve Train
  OHV; two valves per cylinder
• Induction
  Programmed Fuel Injection system (PGM-FI); 34mm throttle body
• Starter
  Electric with optional auxiliary recoil
• Transmission
  Five-speed with reverse
• Driveline
  Direct front and rear driveshafts with torque-sensitive locking front differential
• Front Suspension
  Independent double-wishbone; 6.7-inch travel
• Rear Suspension
  Swingarm with single shock; 6.7-inch travel
• Front Brakes
  Dual 190mm discs
• Rear Brake
  160mm drum
• Front Tires
  24 x 8-12
• Rear Tires
  24 x 10-11
• Length
  82.8 inches
• Width
  47.4 inches
• Height
  46.2 inches
• Wheelbase
  50.0 inches
• Seat Height
  33.6 inches
• Ground Clearance
  7.1 inches
• Curb Weight
  615 pounds (includes all standard equipment, required fluids and a full tank of fuel)
• Fuel Capacity
  3.9 gallons, including 1.3-gallon reserve
• Turning Radius
  9.2 feet
• Towing Capacity
  848 pounds
• Front Rack Capacity
  66.0 pounds
• Rear Rack Capacity
  133.0 pounds
• Model ID
  TRX420FM1
• Emissions
  Meets current EPA and CARB (California) off-road emissions standards.
• Available Colors
  Hero Red, Black Forest Green, TrueTimber® Atera Camo
• Important Safety Information
  Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
• Duration
  Transferable, one year included, limited warranty
• Optional Extended
  Extended coverage available with a HondaCare® Protection Plan

Ask Central Florida PowerSports which 2026 Honda FourTrax Rancher 4x4 you want, the manual model or the DCT IRS EPS.

Advertised price excludes the Destination Charge and dealer documentary fee shown on this page, plus tax, tag, title, registration and any other applicable charges.
